Supercharger Vortech V3-Si

Product information "Supercharger Vortech V3-Si"

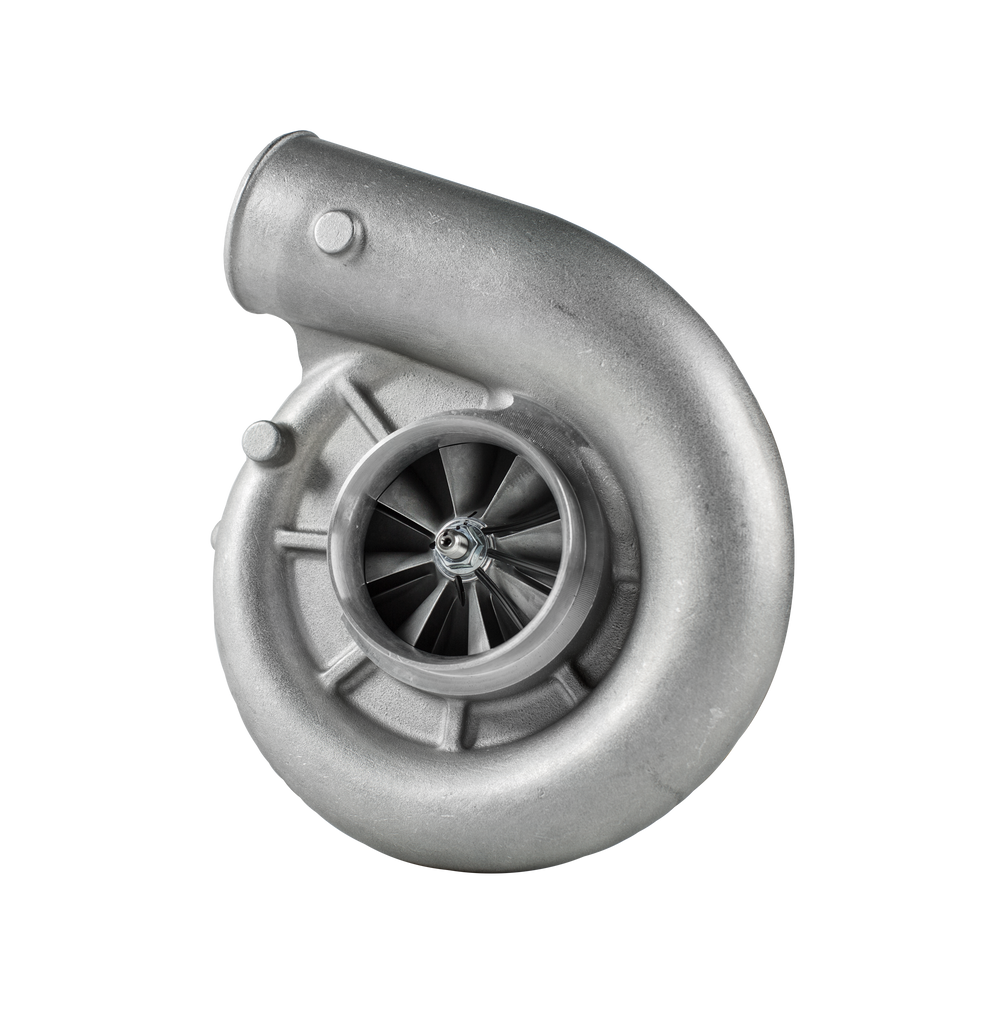

Vortech V3 Si supercharger
Power range: 500-750 hp

Internal Step-Up Ratio: 3.61:1
Max Speed: 52,000 RPM
Max Boost: 22 PSI
Max Flow: 1,150 CFM
Max Power: 775 HP
Peak Efficiency: 78%

Dimensions
Discharge OD: 2.75"
Inlet OD: 3.5"
Discharge ID: 2.38"
Inducer Diameter: 3.1"

Self-contained lubrication system, helical cut gears
